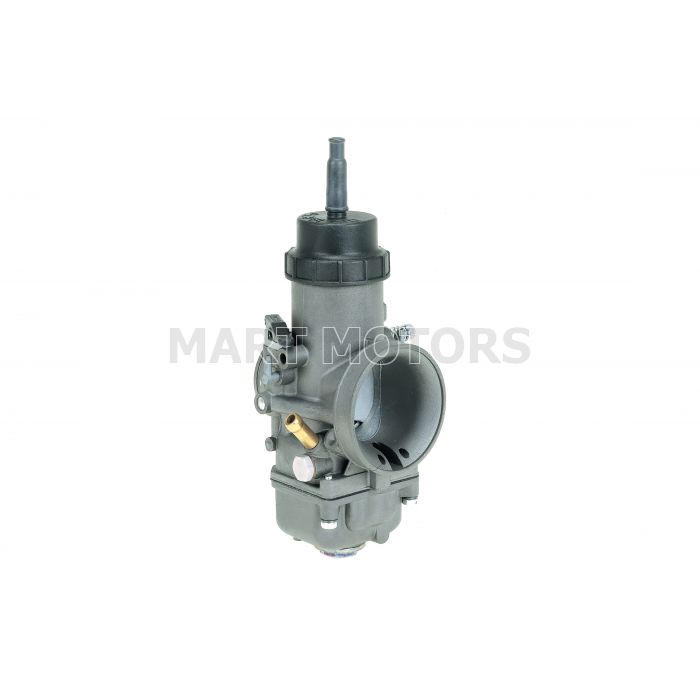

9741 UPLINJAČ VHSB 34 ES

Engine: 125 cc - 2 stroke

Application: CAGIVA Motorcycles

Venturi diam.: 34 mm

Features:

• Flat throttle valve
• Inserted choke
• Indipendent starting circuit
• Idling system with jet and air adjusting screw
• Main circuit with mechanical mixture adjustment by means of conical needle
• Versions with idle adjusting screw on the left and/or the right
• Bowl with the possibility to assemble independent floats Ø 44 elastic fitting connection
• Air intake connection Ø 64 for joints assembling and special for “free” suction

Material: Die-cast Zamac body

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
