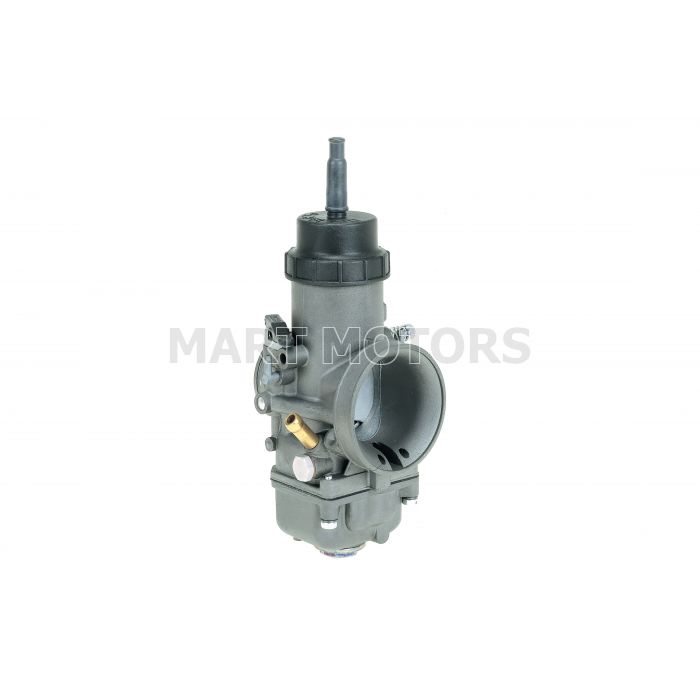

9716 UPLINJAČ VHSB 38 DD

Engine: 125-300cc, 2 stroke

Application: Motorcycles, Kart

Venturi diam.: 36 - 38 - 39mm

Features:

• Flat throttle valve
• Inserted choke
• Indipendent starting circuit
• Idling system with jet and air adjusting screw
• Main circuit with mechanical mixture adjustment by means of conical needle
• Versions with idle adjusting screw on the left and/or the right
• Bowl with the possibility to assemble independent floats Ø 44 elastic fitting connection
• Air intake connection Ø 64 for joints assembling and special for “free” suction

Material: Die-cast Zamac body

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
