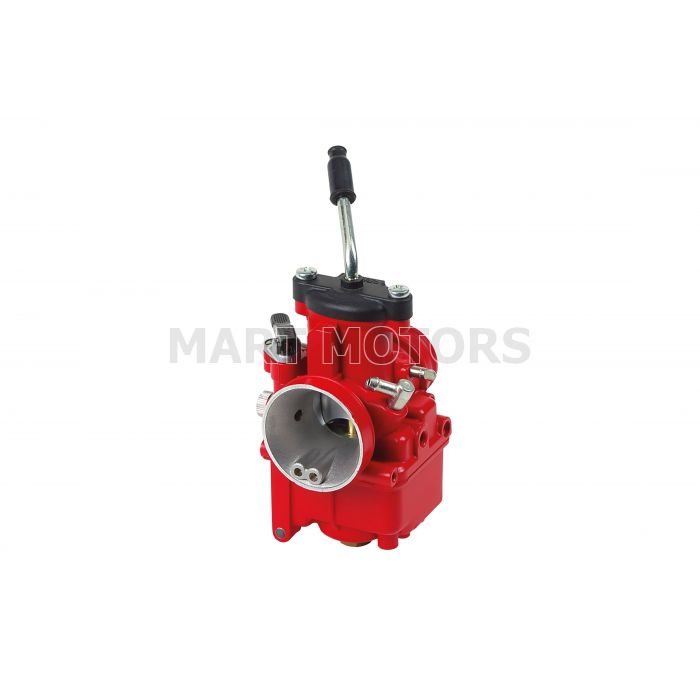

9358 UPLINJAČ VHST 28 BS

Engine: 50-300cc, 2 stroke

Application: Motorcycles

Venturi diam.: 24 - 26 - 28mm

Features:

• ‘Cut-off’ flat throttle valve (racing type)
• Engine connection: male connector Ø 36 for elastic fitting
• Air intake connection: Ø 49 for elastic fitting
• Indipendent starting circuit, operated by a lever, a cable or by a fork lever
• Idling system with jet and mixture adjusting screw
• Main circuit with mechanical mixture adjustment by a conical needle
• Versions with mixture adjusting screws and throttle valve on the right or on the left
• Dual float and carburettor’s body bottom properly shaped
• Versions with horizontal and vertical float chamber air intakes

Material: Die-cast Zamac body

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
