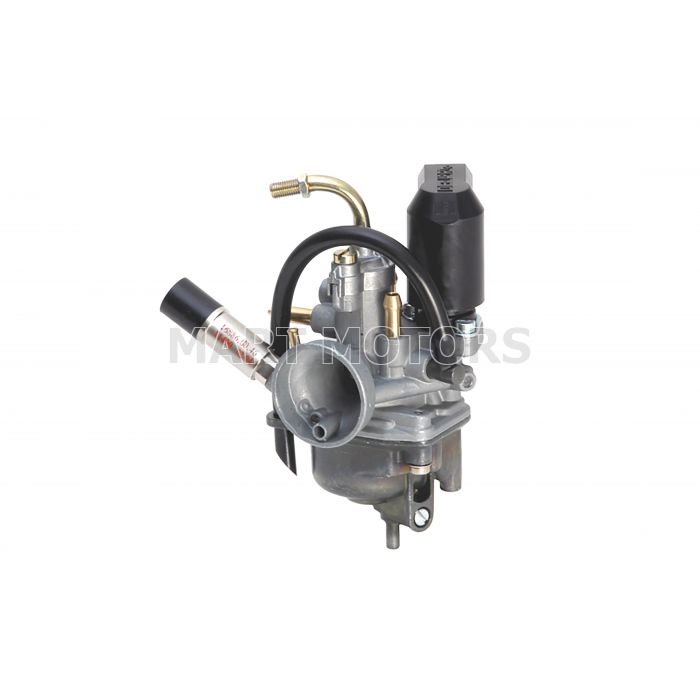

8330 UPLINJAČ PHVA 12 QD

Engine: 50-100cc, 2 stroke

Application: Scooter - Moped - PIAGGIO TYPHOON – NRG – NTT

Venturi diam.: 10 - 12 - 14 - 16 - 17,5mm

Features:

• Piston-type throttle valve
• Indipendent electric or manual starting circuit
• Idling system with jet and air adjusting screw
• Main circuit with mechanical mixture adjustment by conical needle
• Either Ø 24 elastic fitting connection or flange connection distance m/m 42
• Air intake connection Ø 35

Material: Die-cast Zamac body

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
