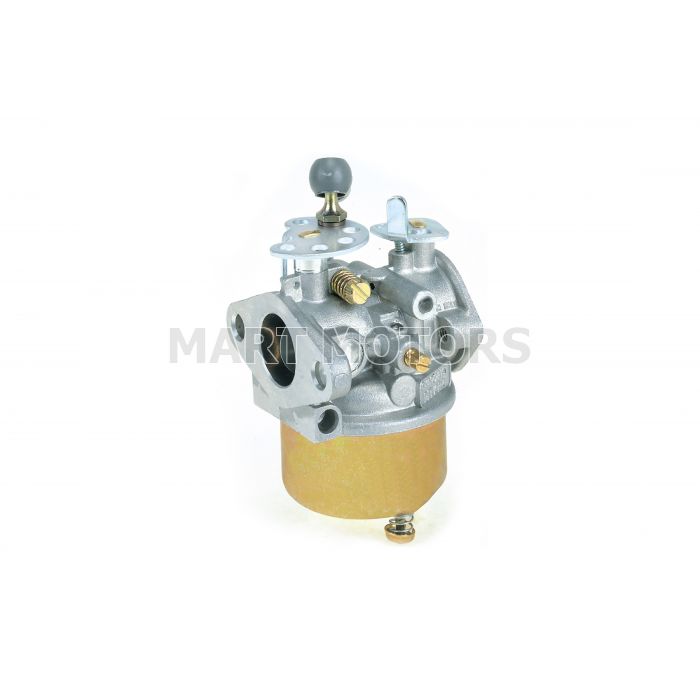

7354 UPLINJAČ FHCD 20 13

Engine: 50-250cc, 2-4 stroke

Application: Industrials

Venturi diam.: 11 - 13 - 16 - 18mm

Barrel diam.: 20 - 22mm

Features:

• Throttle valve with vertical axis
• Starter with strangler throttle valve
• Idle circuit derived from main with jet and mixture adjusting screw
• Main circuit with emulsion jet centrally placed
• Float chamber with annular float and purge switch
• Engine flange connection with 46 mm horizontal distance between centers
• Air inlet flange connection with 35 mm horizontal distance between centers

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
