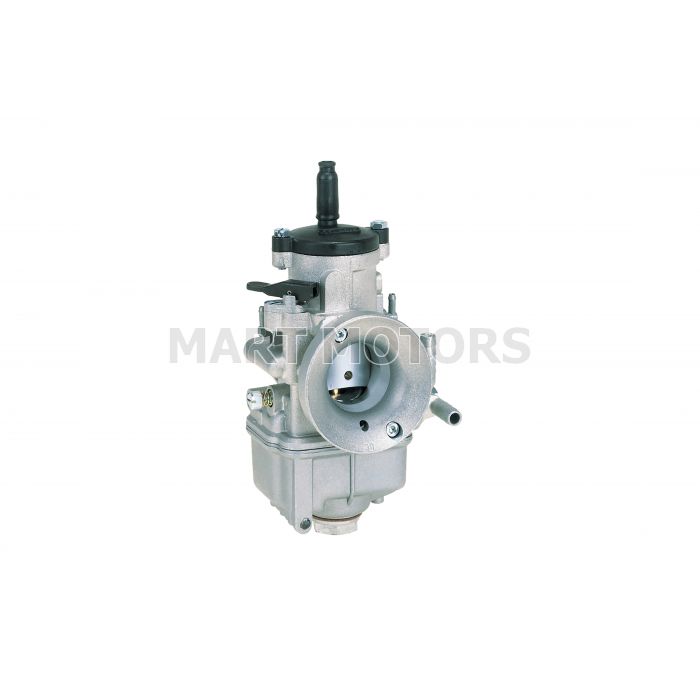

6831 UPLINJAČ PHBE 34 BS

Engine: 125cc, 2 stroke

Application: Kart

Venturi diam.: 30 - 32 - 34 - 36 - 38mm

Features:

• Indipendent starting circuit
• Idling system with jet and mixture adjusting screw
• Main circuit with mechanical mixture adjustment by conical needle
• Versions of mixture adjusting screw on the right and/or on the left
• Chamber with possibility of mounting independent floats
• Sleeve connection with insulating reducing - socket from Ø 45 to Ø 42 and Ø 40 and Ø 45 elastic fitting connection
• Air intake connection Ø 48 – 64 e Ø M48 x 1,25 for trumpet or joint assembly

Material: Die-cast Zamac body

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
