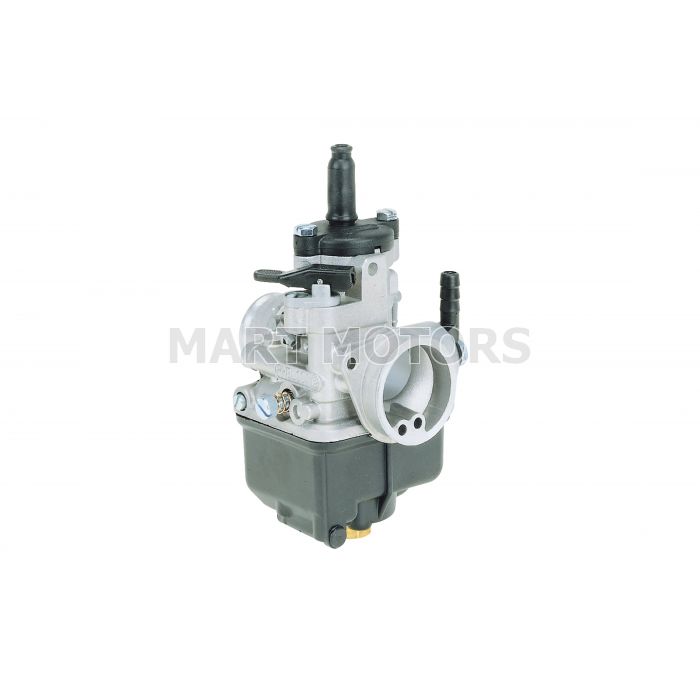

2724 UPLINJAČ PHBL 24 BS

Engine: 50-300cc, 2-4 stroke

Application: Motorcycles

Venturi diam.: 20 - 22 - 24 - 25 - 26mm

Features:

• Piston-type throttle valve Indipendent starting circuit
• Idling system with jet and mixture adjusting screw
• Main circuit with mechanical mixture adjustment by conical needle
• Versions of mixture adjusting screw on the right and/or on the left
• Versions with mechanically-operated diaphragm acceleration pump
• Sleeve connection with insulating reducing socket from Ø 31.75 to Ø 28.57 and Ø 31 elastic fitting connection
• Air intake connection Ø 38 or Ø M38 x 1.25 for trumpet or joint assembly

Material: Die-cast Zamac body

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
