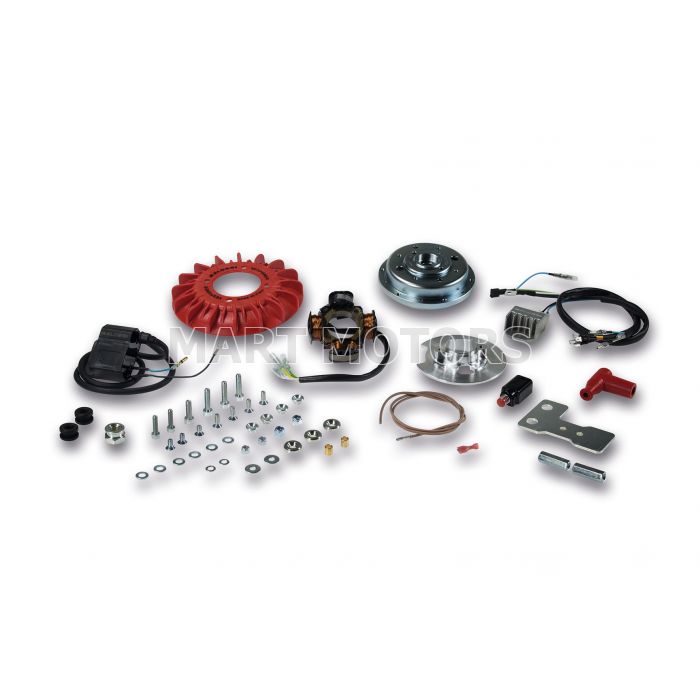

VESPower Ignition cone Ø 19 - flywheel Kg. 1,2

407,08 € 333,80 € 273,61 €
DOBAVLJIVO
SKU
5516951
Ste našli isti Malossi izdelek ceneje? Mi vam ceno izenačimo!
Kontaktirajte nas

VESPower Ignitions


Range of complete ignitions for vintage gear Vespa.

In order to allow an easy and perfect installation, a specific version for each model has been studied.

The new ignition range features:

  • Lightened flywheel (weight 1,2 kg) with moment of inertia equal to 28 Kg/cm² (see attached chart). It is made from forged with external set up for additional masses (not included into the kit).
  • 12 V (90 Watt ) 4-pole stator with output for battery charging.
  • Red colored plastic fan with advanced booster cooling secondary fins (optimized fan profile and distribution absorption).
  • Wiring dedicated to each specific application.
  • Integrated coil/control unit.
  • Voltage regulator: attention - is only provided in some models.



Code

Applications

Crankshaft
cone
Ø

Static
weight
kg.

Moment
of inertia
Kg/cm2

Note

5518177 GL 150 2T euro 0
1962->1965
17 1,8 (*) 54 (*) You need to replace all the lamps
(from 6 to 12 V),
respecting original power expressed in Watts.
5516951 Primavera 125 2T (**)
ET3 Primavera 125 2T
19 1,2 28 You need to replace all the lamps
(from 6 to 12 V),
respecting original power expressed in Watts.
5516953
(***)
COSA 125 - 150 - 200 2T
PX 125 - 150 euro 0-1-2-3
PX E 200 2T
20 1,2 28
5516955 ET3 Primavera 125 2T
Primavera 125 2T (**)
20 1,2 28 You need to replace all the lamps
(from 6 to 12 V),
respecting original power expressed in Watts.
5516952 SPECIAL 50 19 1,2 28 You need to replace all the lamps
(from 6 to 12 V),
respecting original power expressed in Watts.
5517175 PX 125 - 150 2T euro 0-1-2-3
PX E 200 2T
20 1,2 28 Only for vehicles with electric starter.
5518372 ETS 125
PK 50 - 125 - PK HP 50
PK XL 50 - 125
20 1,2 28 There is no need to replace the light bulbs.
5516956
(***)
COSA 125 - 150 - 200 2T
PX 125 - 150 euro 0-1-2-3
PX E 200 2T
20 0,9 17 Ignition with further lightened inertia
flywheel is available,
void of external set up for additional masses.
5516958 ET3 Primavera 125 2T
Primavera 125 2T (**)
20 0,9 17 Ignition with further lightened inertia
flywheel is available,
void of external set up for additional masses.

NB:
(*) Values refer to flywheel with magnets, additional mass and 6 connecting screws.
(**) For proper fitting you have to modify the ignition wiring supplied into the kit.
(***) For versions without parking optional wiring is available art. 5515703: battery charger kit, consisting of wires and voltage regulator.



As optional you can get the additional flywheel masses, which allow to adapt the ignition to the own vehicle according to its set-up, thus further increasing the moment of inertia.
You can choose between two versions with different weight and moment of inertia:



Code

Applications

Dimensions

Static weight
gr.
(including screws)

Moment
of inertia
Kg/cm2

1715715 For ALL VESPower
EXCEPT art. 5516956 and
art. 5517175
Ø 144x105x18 824 34
1715716 For ALL VESPower
EXCEPT art. 5516956 and
art. 5517175
Ø 134x105x18 420 19

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

SKU Naziv
0718376Bflange for fixing stator ø 45 for vespower ignition for vespower, per vespa et3 primavera 125 2t and vespa special 50 2t
1815481Bbracket for coil
1915682E2 m nuts 06x30 spanner 10
1916950complete bolts for vespower inner rotor ignition
1917499fan fastening screw kit for vespower ignition
2215683Bwired cable vespower
5515476Bstator for vespower ignition
5515479Bvespower transducer
5515480Bvespower regulator
5517159Bflywheel ø 125x42 for vespower
5517507flywheel ø 125x42 and stator kit for vespower electronic ignition
5517518flywheel ø 125x42 and fan kit for vespower electronic ignition
5519119Bshielded fixing spark plug
7416936Bcooling fan ø 167 for vespower ignition
SKU Naziv
1715715mass for flywheel ø 144 for vespower - flywheel kg. 1.2
1715716mass for flywheel ø 134 for vespower - flywheel kg. 1.2
7419899mhr cooling fan ø 167 for vespower ignition
