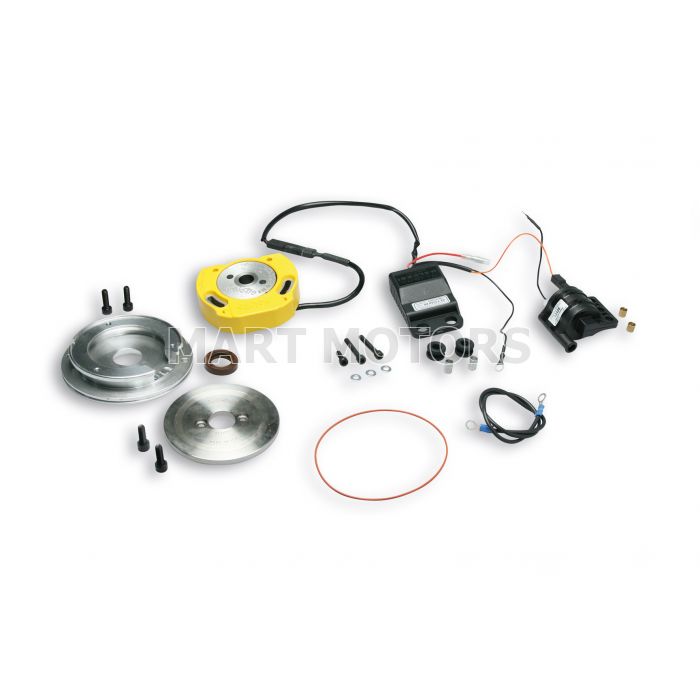

VŽIG Z NOTRANJIM ROTORJEM Pit Bike 4t

INNER ROTOR IGNITION

Such a new system resulted from the need to overcome the technical limitations imposed by conventional flywheel ignition, which cannot ensure consistent performance over 10,000 rpm and causes severe setting-up problems for racing vehicles. After opting for a radical solution of the problem, Malossi can now offer control units equipped with an inner rotor that provides regular performance till 16,000 rpm and eliminates all problems associated with conventional ignition units.

TECHNICAL SPECIFICATIONS

Variable spark advance control unit

• Microprocessor control
• S.M.T. assembly technology

High voltage coil

• Capacitive discharge
• Ultra high efficiency
• Constant 30,000 V discharge voltage up to 20,000 rpm

Rotor-stator unit

• Permanent magnet dynamically balanced inner rotor Ø 58 mm, with low power absorption.
• The stator : a current generator sealed with shock ? resistant injection of insulating and waterproof resin
• Amagnetic stainless steel supplementary inertial flywheel Ø 94.5 mm

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
