SIVA LITINA CILINDER KIT Ø 47 pin Ø 12 H2O I-TECH

451,58 € 370,29 € 303,52 €
DOBAVLJIVO
SKU
3112044
Ste našli isti Malossi izdelek ceneje? Mi vam ceno izenačimo!
Kontaktirajte nas

Malossi, whose expertise in balancing a vast experience with the latest technology, embraced this new challenge: to bring to the racetrack a fuel injected two stroke engine.
With the new INJECTION TECH range of products a new chapter is written, an answer, the racing world was anticipating, to satisfy the growing number of Malossi Trophy Races for 70cc scooters.



TECHNICAL FEATURES cylinder kits

CAST IRON CYLINDER - Technology

  • Material: special self-lubricating, wear-resistant, highly refined cast iron alloys, obtained by Shell Moulding gravity die-casting.
  • Machining: on numerically controlled high precision machine tools.
  • Recalculated heat exchange surfaces.
  • Exhaust and transfer ports designed and tested for maximum thermodynamic performance.
  • Shape and surface texture dimensional checks.
  • Cylinder and piston selected for a 100% fit of 0.010-0.005 mm.
  • Checking of all the seals carried out.

ALUMINIUM CYLINDER - Technology

  • Cylinders obtained by gravity die-casting in permanent steel moulds.
  • Material: hardened and tempered high silicon content primary aluminium alloy.
  • Machining: on numerically controlled high precision machine tools.
  • Cylinder liner with silicon carbide metal-spray coating on a galvanic nickel matrix, cross-honed with passes with diamonds for very tight tolerances.
  • Heat exchange surfaces recalculated.
  • Exhaust and transfer ports designed and tested for maximum thermodynamic performance.
  • Shape and surface texture dimensional checks.
  • Cylinder and piston selected for a fit of 0.010-0.005 mm.
  • Checking of all the seals carried out.

PISTON

  • Material: special aluminium alloy with high silicon content and low thermal expansion.
  • Machining: on numerically controlled machine tools.
  • Lightened and strengthened.
  • Heat exchange surfaces increased.

PISTON RINGS

  • Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.

HEAD

  • Material: special die-cast aluminium alloy.
  • Geometry of heat exchange surfaces recalculated and increased (air-cooled models).
  • Cooling circuit sections and paths recalculated and resized (liquid-cooled models).
  • Machining: numerically controlled high precision machines with diamond tools.
  • Surface rust prevention treatment.

NOTICE:
FOR THE PROPER WORKING OF THE KIT IT IS ABSOLUTELY NECESSARY TO USE THE TC UNIT SUPPLIED IN THE KIT AND TO SUBSTITUTE THE PRIMARY GEARS WITH THE HTQ MALOSSI ONE, TOGETHER WITH THE ORIGINAL EXHAUST SYSTEM OR THE MALOSSI ONE.



Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

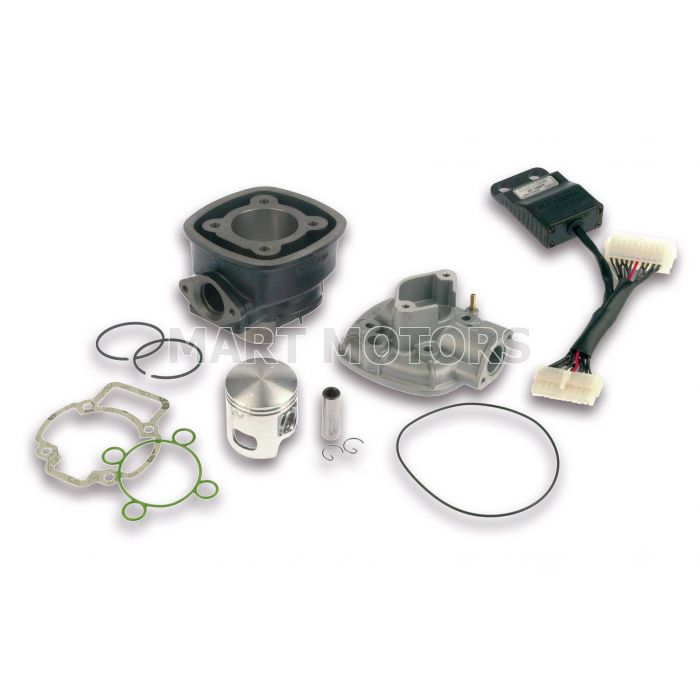

SKU Naziv
1112089complete cylinder gasket set ø 47
193298E2 m studs 6x18 (uni 5911) for exhasut system
2311783pin ø 12x08x38 for piston
277054.C06 vl11 and original valve carbon fibre petals with thickness 0,30/0,35/0,40
3112319cast-iron cylinder ø 47
347036piston 2t ø 47 with pin ø 12 and 2 rectangular rings size 0
347036.40piston 2t ø 47.4 with pin ø 12 and 2 rectangular rings
347036.80piston 2t ø 47.8 with pin ø 12 and 2 rectangular rings
347036.A0piston 2t ø 47 with pin ø 12 and 2 rectangular rings size a
347036.B0piston 2t ø 47 with pin ø 12 and 2 rectangular rings size b
347036.C0piston 2t ø 47 with pin ø 12 and 2 rectangular rings size c
347036.D0piston 2t ø 47 with pin ø 12 and 2 rectangular rings size d
347036.E0piston 2t ø 47 with pin ø 12 and 2 rectangular rings size e
3545012 piston rings ø 47x1.5 rectangular
354501.402 piston rings ø 47.4x1.5 rectangular
354501.802 piston rings ø 47.8x1.5 rectangular
364450pin clip ø 12x1 c-shaped
3812329h2o aluminium cylinder head ø 47
5512077inj control electronic controller for i-tech cylinders
6611785Broller bearing ø 12x17x16
