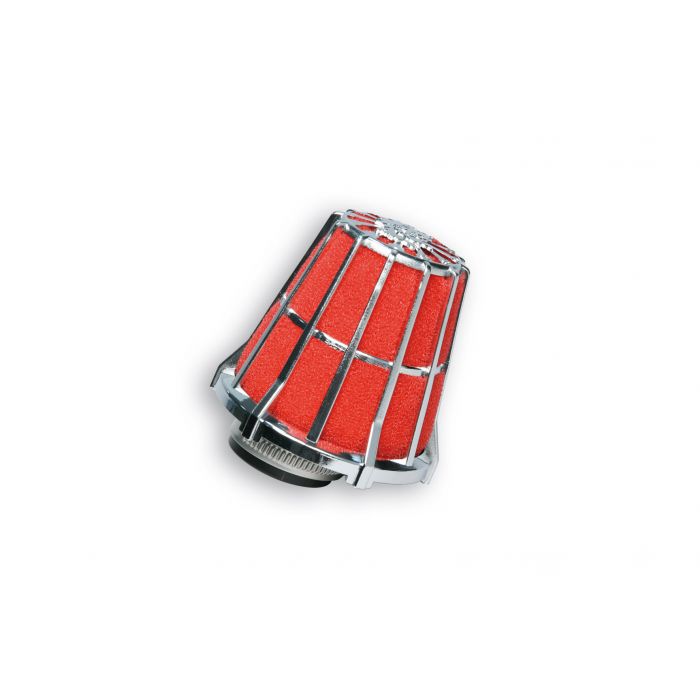

RED FILTER E5 Ø 43 PHBL 25 CHROMED

30,50 € 25,00 €
DOBAVLJIVO
SKU
047729.K0
Ste našli isti Malossi izdelek ceneje? Mi vam ceno izenačimo!
Kontaktirajte nas

RED FILTER more oxygen to the engine

The quality which confirms success


Too often we neglect the simplest and most obvious component of our engine, whereas minor modifications increase efficiency, improve performance and extend service life of the engine.
Let's consider for instance the fuel system, which supplies the "burst" of air and petrol that is closely related to the engine's performance.
The filter task is of vital importance. In fact, on one hand it must prevent any impurity (which could cause serious damage in short time) from getting into the engine; on the other hand it must allow for the best possible breathing without suffocating the engine.
These contradicting tasks can only be unified with a first quality filter, which is the result of careful studies, Malossi experience, and the use of premium materials.
Therefore, it is not by chance that all the best manufacturers start with the filter design, which is the first component in the engine's "respiratory sequence", in order to achieve the highest engine performance suitable for racing.
Undisputed leader both in racing scooter engine preparation and defining special fuel systems, Malossi has had the chance to fine tune the best scooter filter ever produced.
Its name is RED FILTER and it is characterised by a very light and removable reticular structure and by a filtering component made of expanded polyurethane with open cells, self extinguishing and with a large accumulation capacity.
This filter can be fitted to any scooter in a few minutes because it is equipped with special connections, which allow fitting it in the best possible position. Its conduit and surfaces have been expressly designed to achieve the best possible performance for any model of scooter. Also it guarantees consistency and high performance.
After having carried out the necessary and simple periodic cleaning operations, RED FILTER guarantees always-perfect engine breathing, making the engine itself more long-lived.
The benefits concerning environmental pollution must not be neglected: an engine which breaths better is also an engine that pollutes and consumes less.


E5 air filter

E5 air filter with filtering component made of red expanded polyurethane for 50 cc scooters.
It is suitable for any CARBURETTOR from Ø 12 to Ø 30.
Also available with chrome-plated silencer cup.
Shape: sleek, aerodynamic and compact.
Construction: Web structure, lightweight and removable.
Filtering component made of expanded polyurethane with open cells, self extinguishing and with a big accumulation; pipes and surfaces have been expressly calculated.
E5 is pre-eminently an air-horn filter; therefore it has two special qualities: the one of air intake (Venturi) and the one of air filter.





30° INCLINED FILTERS

Fastening: centered - clamp

.C0 : Filter with black cup

.W0 : Filter with chromed cup

.K0 : Chromed filter

.50 : Black filter

E5filter

Code


Ø Inlet mm

A

Dimension mm

E

Carburettor

Filters recommended for Scooter 50 with ORIGINAL CARBURETTOR - EXCEPT PEUGEOT

04 7593

.C0 - .W0 - .K0 - .50

38 128

Dell'Orto PHVA ø 12-14 ÷ 16-17,5

Dell'Orto PHBN ø12-14 ÷ 16-17,5

Mikuni

Filter recommended for per Scooter 50 with ORIGINAL CARBURETTOR - FOR PEUGEOT

0411299

.K0 - .50

28 115

Gurtner PA 325 HD 21

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 3296

.C0 - .W0 - .K0 - .50

38 115

Dell'Orto PHBL ø 20÷25

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 9424

.C0 - .W0 - .K0

41 128

Dell'Orto PHVB

Filters recommended for DIFFERENT APPLICATIONS

04 3075

.C0 - .K0 - .50

48 119

Dell'Orto PHF ø 30÷36

Filters recommended for DIFFERENT APPLICATIONS

04 3077

.C0 - .W0 - .50

52 119

Dell'Orto PHM ø 38÷41

Filters recommended for DIFFERENT APPLICATIONS

04 3270

.50

42 119

Dell'Orto PHBH ø 26÷30





STRAIGHT FILTERS

Fastening: off-set - clamp

.C0 : Filter with black cup

.W0 : Filter with chromed cup

.K0 : Chromed filter

.50 : Black filter

E5filter

Code


Ø Inlet mm

A

Dimension mm

E - D

Carburettor

Filters recommended for Scooter 50 with ORIGINAL CARBURETTOR - EXCEPT PEUGEOT

04 2419

.C0 - .50

35 90 - 7

Dell'Orto PHVA ø 12

Mikuni VM ø 19÷22

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2411

.C0 - .50

38 90 - 7

Dell'Orto PHBL ø 20÷25

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2412

.C0 - .W0 - .K0 - .50

32 90 - 9,25

Dell'Orto PHBG ø15÷21

Mikuni

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2414

.50

53 90 - 3,5

Mikuni

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2415

.50

50 90 - 6

Mikuni

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 2416

.50

44 90 - 4,25

Mikuni VM ø 24÷28

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 3074

.C0 - .W0 - .50

32x1,25 90 - 9,25

Dell'Orto PHBG/A ø15÷21   (Fastening: off-set - threaded)

Filters recommended for Scooter 50 with NON ORIGINAL CARBURETTOR

04 7729

.C0 - .W0 - .K0 - .50

43 102 - 4

Dell'Orto PHBL ø 25

Filters recommended for DIFFERENT APPLICATIONS

04 2413

.50

55 90 - 3,5

Mikuni

Filters recommended for DIFFERENT APPLICATIONS

04 2418

.50

40 90 - 4,25

Mikuni



Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Proizvajalec Model
AEON MOTORAEON MOTOR COBRA 50 2T (AT70)
APRILIAAPRILIA SR 50 2T 1994->
APRILIAAPRILIA AREA 51 50 2T LC
APRILIAAPRILIA SR NETSCAPER 50 2T LC (MINARELLI)
APRILIAAPRILIA RALLY 50 2T LC (MINARELLI)
APRILIAAPRILIA SR RACING 50 2T LC (MINARELLI)
APRILIAAPRILIA SONIC 50 2T
APRILIAAPRILIA SONIC 50 2T LC
APRILIAAPRILIA SR REPLICA 50 2T LC <-1999
APRILIAAPRILIA SR STEALTH 50 2T LC (MINARELLI)
APRILIAAPRILIA SR WWW 50 2T
BENELLIBENELLI 491 SPORT 50 2T LC (MINARELLI)
BETABETA ARK 50 2T
BETABETA ARK 50 2T LC
BETABETA EIKON 50 2T LC
BENELLIBENELLI 491 GT 50 2T (MINARELLI)
BENELLIBENELLI K2 50 2T
BENELLIBENELLI K2 50 2T LC
BENELLIBENELLI NAKED 50 2T
BENELLIBENELLI PEPE LX 50 2T euro 2 (QJ1E40QMB-4)
BETABETA QUADRA 50 2T
BENELLIBENELLI QuattronoveX 50 2T euro 2
BSVBSV AX 50
BSVBSV GZ 50
CPICPI ARAGON GP 50 2T
CPICPI HUSSAR 50 2T <-2002 (50 C)
CPICPI HUSSAR 50 2T 2003->
CPICPI OLIVER 50 2T <-2002 (50 C)
CPICPI OLIVER 50 2T 2003->
CPICPI POPCORN 50 2T <-2002 (50 C)
CPICPI POPCORN 50 2T 2003->
DRRDRR DRX 90 2T LC <-2015
DRRDRR DRX 90 2T LC 2016->
EXPLOREREXPLORER CRACKER 50 2T 2003-> (GE 1E 400 MB)
GARELLIGARELLI GSP 50 2T LC euro 2 (1PE40MB)
GARELLIGARELLI TIESSE 50R 50 2T euro 2 (1E40QMB)
HUPPERHUPPER MONTECARLO 30 50 2T (1E40QMB)
ITALJETITALJET DRAGSTER 50 2T LC
KEEWAYKEEWAY F-ACT 50 2T
KEEWAYKEEWAY GOCCIA 50 2T (KW1E40QMB-4 )
KEEWAYKEEWAY HURRICANE 50 2T euro 2 (KW1E40QMB)
KEEWAYKEEWAY MATRIX 50 2T (KW1E40QMB-4)
KEEWAYKEEWAY PIXEL 50 2T euro 2 (KW1E40QMB )
KEEWAYKEEWAY RY8 50 2T (KW1E40QMB-4 )
MALAGUTIMALAGUTI F10 50 2T
MALAGUTIMALAGUTI F10 WAP 50 2T euro 2 (QJ*CMA03C*)
MALAGUTIMALAGUTI F12-PHANTOM 50 2T
MALAGUTIMALAGUTI F15 FIREFOX 50 2T LC
MALAGUTIMALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC
MALAGUTIMALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
MALAGUTIMALAGUTI F12-PHANTOM 50 2T LC
MALAGUTIMALAGUTI F12 R ARIA 50 2T euro 2 (QJ*CMA02C*)
MALAGUTIMALAGUTI F12 R LC 50 2T LC euro 2
MALAGUTIMALAGUTI YESTERDAY 50 2T
MBKMBK EVOLIS 50 2T
MBKMBK FIZZ 50 2T
MBKMBK FLIPPER 50 2T
MBKMBK FORTE 50 2T
MBKMBK HOT CHAMP 50 2T
MBKMBK MACH G 50 2T
MBKMBK MACH G 50 2T LC
MBKMBK NITRO 50 2T LC
MBKMBK OVETTO 50 2T
MBKMBK SORRISO 50 2T 1996->
MOTRONMOTRON SYNCRO 50
MOTRONMOTRON THUNDER'S 50
OVEROVER THOR 50 2T LC 2013-> (LJ1PE40MB)
SUZUKISUZUKI TS ER 80 2T
SUZUKISUZUKI RG 80 2T
YAMAHAYAMAHA AEROX 50 2T LC euro 0-1
YAMAHAYAMAHA AEROX 50 2T LC euro 2
YAMAHAYAMAHA AXIS 50 2T
YAMAHAYAMAHA BREEZE 50 2T
YAMAHAYAMAHA JOG ER 50 2T
YAMAHAYAMAHA JOG 50 2T
YAMAHAYAMAHA JOG R 50 2T
YAMAHAYAMAHA JOGRR 50 2T LC euro 2
YAMAHAYAMAHA JOG Z 50 2T
YAMAHAYAMAHA NEO'S 50 2T
YAMAHAYAMAHA VINO 50 2T
YAMAHAYAMAHA WHY 50 2T
YAMAHAYAMAHA ZEST 50 2T
SKU Naziv
043380Bblack cap for e5 air filters
0411383Bchrome cap for e5 air filters
