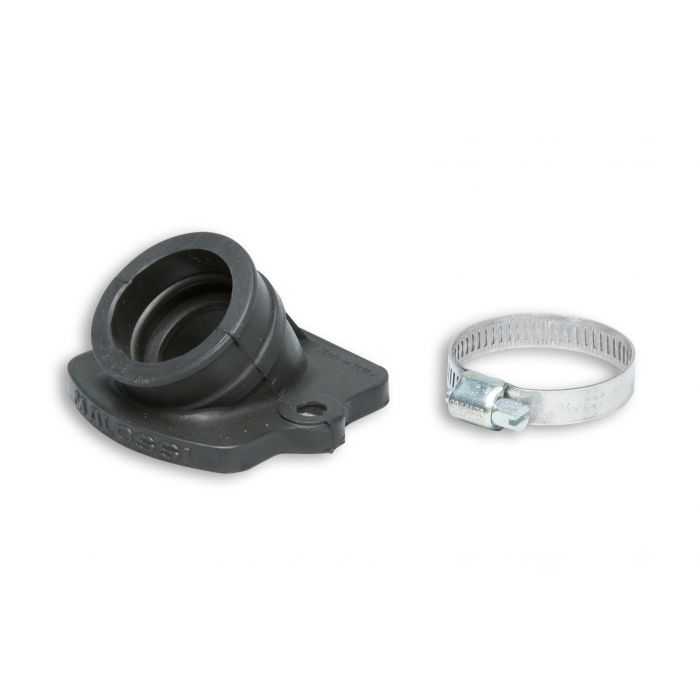

RACING FKM NAGNJENO SESALNO KOLENO Ø 22-28 L.26,5 (PIAGGIO-GILERA 2T 50)

79,42 € 73,07 € 59,89 €
DOBAVLJIVO
SKU
029441B
Ste našli isti Malossi izdelek ceneje? Mi vam ceno izenačimo!
Kontaktirajte nas

INTAKE MANIFOLDS


Intake manifold conveys the air-fuel mixture to the engine by means of reed valve.


The total efficiency of an engine is calculated as the product of various partial efficiencies, such as:
- volumetric efficiency
- thermodynamic efficiency
- mechanical efficiency

Volumetric efficiency is the ratio between the quantity of fuel that can enter the combustion chamber and the displacement of the engine.


One of the main factors affecting volumetric efficiency is loss due to friction that the fluid encounters (air-fuel mix) when feeding from the air filter to the combustion chamber. Therefore, one of the components that greatly influences this loss is the intake manifold, since all of the mix has to travel through it with the minimum possible loss. For this reason, sudden increases in section and corners along the mix path must absolutely be avoided.
The intake manifold also acts as an accumulation tank for the fresh load, since the mix, travelling at a certain speed, requires time to stop when the reed valve closes. Therefore, mix collects in the manifold and exerts pressure against the reeds. For this reason, each manifold has a well-defined range of revolutions within which it provided maximum efficiency (tuned manifold).
In addition, the manifold supports the carburettor by connecting it to the engine casing or to the cylinder, damping vibrations between casing and carburettor and preventing emulsion of gas and air in the carburettor tank.
This apparently simple component therefore requires a great deal of study in order to take full advantage of all of its qualities.
Malossi engineers have achieved this to perfection. Malossi, with decades of experience in engine fuelling systems, has created a new line of manifolds in rubber and aluminium alloy for the new generation of scooters, and has tested and developed the line on roads and race tracks.
Malossi rubber manifolds feature a composite structure. Their construction begins with an aluminium insert that is encased in a special plastic material that is impervious to oils and fuels, guaranteeing increased rigidity at the point of attachment to the casing and greater flexibility of the manifold body.



ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic.



Piaggio - Gilera 2T 50 engines

APRILIA - DERBI - GILERA - ITALJET - PIAGGIO

Material

INTER-AXIS mm

Ø hole

Ø manifolds

Ø inlet

total length

carburettors applications

Note

02 8732B NBR 52 6,5 21 24,5 26,5

PHBG 15-21

Not suitable for original air box filter
02 8856B NBR 52 6,5 22 28 26,5

PHBG 15-21 Racing (linkage 28)

PHVB 22 PHBL 22-25

Not suitable for original air box filter
02 9441B viton 52 6,5 22 28 26,5

PHBG 15-21 Racing (linkage 28)

PHVB 22 PHBL 22-25

Not suitable for original air box filter
02 9732B viton 52 6,5 21 24,5 26,5

PHBG 15-21

Not suitable for original air box filter





Yamaha - MBK - Minarelli horizontal 2T 50 engines

APRILIA - BENELLI - BETA - CPI - EXPLORER

HUPPER -ITALJET - MALAGUTI - MBK - YAMAHA

Material

Ø hole

Ø manifolds

Ø inlet

total length

carburettors applications

Note

02 8857B NBR 6,7 22 28 29

PHBG 15-21 Racing (linkage 28)

PHVB 22 PHBL 22-25

Not suitable for original air box filter
0213222B

NBR

6,7 22 24,5 29

PHBG 15-21 Racing

Not suitable for original air box filter
0213661B viton 6,7 22 24,5 29

PHBG 15-21 Racing

Not suitable for original air box filter
0213662B viton 6,7 22 28 29

PHBG 15-21 Racing (linkage 28)

PHVB 22 PHBL 22-25

Not suitable for original air box filter



Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Proizvajalec Model
APRILIAAPRILIA MOJITO CUSTOM 50 2T
APRILIAAPRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M)
APRILIAAPRILIA SCARABEO STREET 50 2T (PIAGGIO)
APRILIAAPRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M)
APRILIAAPRILIA SPORTCITY ONE STREET 50 2T euro 2
APRILIAAPRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO)
APRILIAAPRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M)
APRILIAAPRILIA SR MOTARD 50 2T euro 2
APRILIAAPRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M)
APRILIAAPRILIA SR R (carb.) 50 2T LC (PIAGGIO)
APRILIAAPRILIA SR Street 50 2T LC euro 2
DERBIDERBI ATLANTIS - BULLET 50 2T 2003->
DERBIDERBI GP1 50 2T LC
DERBIDERBI GP1 OPEN 50 2T LC
DERBIDERBI GP1 REVOLUTION 50 2T LC
DERBIDERBI VARIANT Sport 50 2T
GILERAGILERA DNA 50 2T LC
GILERAGILERA EASY MOVING 50 2T
GILERAGILERA ICE 50 2T
GILERAGILERA RUNNER SP 50 2T LC <-2005
GILERAGILERA RUNNER SP 50 2T LC 2006-> (C451M)
GILERAGILERA RUNNER FX 125 2T LC
GILERAGILERA RUNNER FXR - SP 180 2T LC
GILERAGILERA RUNNER 50 2T LC
GILERAGILERA STORM 50 2T
GILERAGILERA STALKER 50 2T
GILERAGILERA TYPHOON 50 2T
GILERAGILERA TYPHOON X 50 2T
ITALJETITALJET JET SET 50 2T
ITALJETITALJET TORPEDO 50 2T
PIAGGIOPIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M)
PIAGGIOPIAGGIO DIESIS 50 2T
PIAGGIOPIAGGIO NRG EXTREME 50 2T
PIAGGIOPIAGGIO NRG EXTREME 50 2T LC
PIAGGIOPIAGGIO FLY 50 2T
PIAGGIOPIAGGIO FREE 50 2T
PIAGGIOPIAGGIO LIBERTY 50 2T
PIAGGIOPIAGGIO NRG MC2 50 2T LC <-1997
PIAGGIOPIAGGIO NRG MC2 50 2T LC 1998->
PIAGGIOPIAGGIO NRG 50 2T LC
PIAGGIOPIAGGIO NRG MC3 DT 50 2T
PIAGGIOPIAGGIO NRG MC3 DD 50 2T LC
PIAGGIOPIAGGIO NTT 50 2T LC
PIAGGIOPIAGGIO NRG Power DD 50 2T LC
PIAGGIOPIAGGIO NRG Power DT 50 2T (C453M)
PIAGGIOPIAGGIO QUARTZ 50 2T LC
PIAGGIOPIAGGIO SFERA RESTYLING 50 2T
PIAGGIOPIAGGIO SFERA 50 2T
PIAGGIOPIAGGIO SFERA 75 2T
PIAGGIOPIAGGIO TYPHOON 50 2T 2007->2010
PIAGGIOPIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M)
PIAGGIOPIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M)
PIAGGIOPIAGGIO ZIP Fast Rider 50 2T
PIAGGIOPIAGGIO ZIP 50 2T 2000-> (C25EM)
PIAGGIOPIAGGIO ZIP 50 2T <-1999
PIAGGIOPIAGGIO ZIP SP 50 2T LC 2001->
PIAGGIOPIAGGIO ZIP SP 50 2T LC <-2000
VESPAVESPA ET2 50 2T 2000->
VESPAVESPA ET2 50 2T <-1999
VESPAVESPA LX 50 2T
VESPAVESPA Primavera 50 2T euro 2 (C533M)
VESPAVESPA S 50 2T euro 2 (C381M)
VESPAVESPA Sprint 50 2T euro 2
